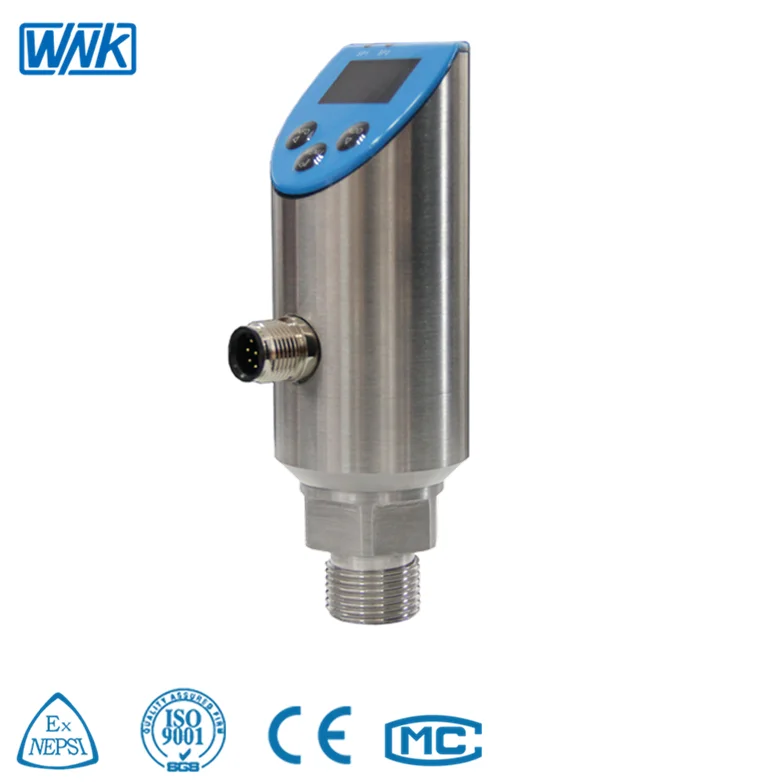

60MPa PNP Electronic Pressure Switch For Sanitary Application 1.0A

Brand Name : WNK

Model Number : WNK-SPS

Place of Origin : Anhui, China

MOQ : 1pcs

Price : $85.00 - $105.00/Pieces

Payment Terms : T/T, Western Union, MoneyGram, Paypal

Supply Ability : 2000 Set/Sets per Week

Delivery Time : 5-8 work days

Packaging Details : each product in one inner paper box with foam protection

Max. Current : 1.0A

Max. Voltage : 30V DC

Max. Working Pressure : 600bar

Measured media : liquid, gas and steam

Pressure range : -100KPa~60MPa

Output signals : 4~20mA, 0-5V, 0-10V, RS485

Accuracy : 0.5%F.S

Switching type : NO/NC

Display : OLED

Protection class : IP65

Housing material : 304SST

Power supply : 12-30V DC

Port : Shanghai port

Contact Now

Pressure Control Electronic Pressure Switch For Sanitary Application

4~20mA 0-5V Electronic Pressure Switch

Product Description

SPS pressure switch is designed for pressure monitoring and measurement in liquid and gaseous media. The SPS is suited for general industrial applications such as in mechanical manufacturing, in machine tool systems, in hydraulic and pneumatic systems, for pressure monitoring and control and for pumps and compressors. It is pressure switch, transmitter and display in one device. In its standard configuration it has optional two switching outputs (PNP or NPN), an analog output signal (0...20mA| 4…20 mA or 0...5V| 0…10 V) as well as with RS485 Link.

Applications
pump control,
storage tank monitor,
liquid level control,
filter blocking and monitor,
leakage surveillance.

Feautures

- Programmable automatic control design

- OLED with back-light display

- Display 180°turnable

- Displaying pressure peak value and environment temperature

- Body 330°rotable

- Industrial touch-sensitive button

- Switch points settable

- PNP/NPN +4~20mA/0-5V output

- Support MODBUS

- Pressure, level and temperature switch

- OEM & Customizable

Dimension

Ordering Code

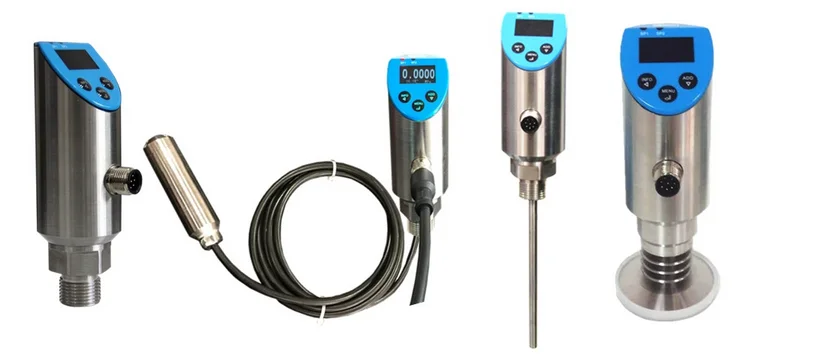

Product Show
